LSG-60

6W 120V AC PLUGIN LED TAPE LIGHT

The LSG-60 is a dimmable 120V AC outdoor tape light offering the highest quality in direct-connect LED lighting. It can be ordered in custom lengths, in 3-inch increments and comes sealed with an IP67 rating for outdoor or wet installations and applications. This ETL Listed, 120V linear light can reach a maximum length of 66Ft. in a single continuous run.

POWER CONSUMPTION
LUMEN OUTPUT
CRI
COLOR TEMPERATURE
DIMMING
MAXIMUM RUN LENGTH
CUTTABLE
OPERATING VOLTAGE
OPERATING TEMPERATURE
STORAGE TEMPERATURE
BEAM ANGLE
IP RATING
CERTIFICATIONS
LUMEN MAINTENANCE

6W per Ft.
Up to 550 Lm/ Ft.
90+
24K / 27K / 30K / 35K / 40K / 50K
TRIAC
66 Ft.

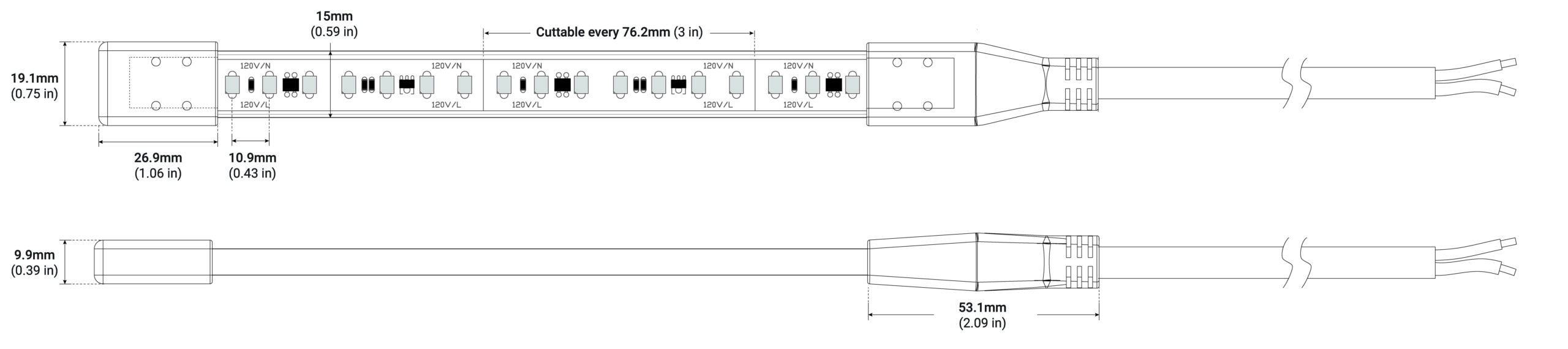

Every 3 in (76.2mm)
120V AC

-22°F (-30°C) to 122°F (50°C)

-4°F (-20°C) to 140°F (60°C)
120°
IP67
ETL Listed
50,000 Hrs.

Key Features:

Direct 120V AC Operation: Operates directly from line voltage, eliminating the need for separate power supplies.

Extended Continuous Runs: Supports continuous runs up to 66 feet, enabling long and seamless lighting installations.

Versatile Location Rating: Suitable for both wet and dry locations, providing flexibility for diverse installation environments.

High Color Accuracy: Delivers 90+ CRI, ensuring accurate and vibrant color rendering.

Indoor and Outdoor Versatility: Designed for both indoor and outdoor use, accommodating a wide range of lighting applications.

Highly Precise Customization: Offers custom length options in 3-inch increments, allowing for highly tailored installations.

Adjustable Illumination: Dimmable functionality provides control over light intensity.

Certified Safety: ETL listed, meeting recognized safety standards for electrical products.
