LSG-40

4.0W 120V Indoor / Outdoor LED Strip

The LSG-40 is a dimmable 120V AC outdoor tape light offering the highest quality in direct-connect LED lighting. It can be ordered in custom lengths, in 4 inch increments and comes sealed with an IP67 rating for outdoor or wet installations and applications. This ETL Listed, 120V linear light can reach a maximum length of 150Ft. in a single continuous run.

POWER CONSUMPTION
LUMEN OUTPUT
CRI
COLOR TEMPERATURE
DIMMING
MAXIMUM RUN LENGTH
CUTTABLE
BINNING
OPERATING VOLTAGE
OPERATING TEMPERATURE
BEAM ANGLE
IP RATING
CERTIFICATIONS
LUMEN MAINTENANCE

4W per Ft.
392 Lumens per Ft.
90+
24K / 27K / 30K / 35K / 40K / 50K
ELV and TRIAC
150 Ft.

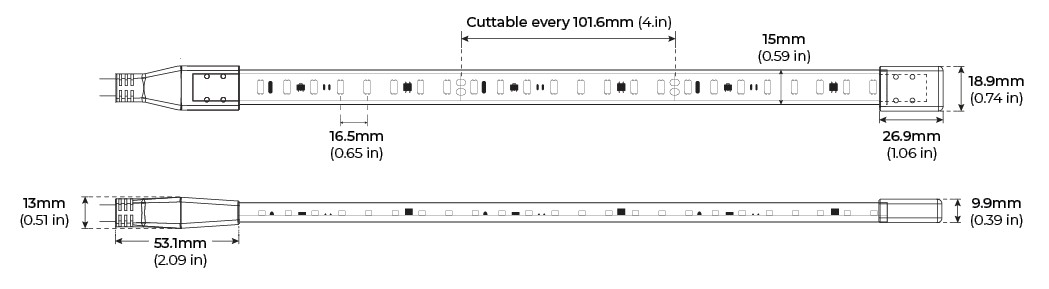

Every 4.0 in (101.6mm)
MacAdam Ellipse 2-Step
120V AC

-22°F (-30°C) to 122°F (50°C)
120°
IP54 / IP67
ETL Listed
50,000 Hrs.

Key Features:

Direct Line Voltage Operation: Operates directly on 120V AC, eliminating the need for external power supplies.

Extensive Continuous Runs: Supports continuous runs up to 150 feet, enabling long and seamless lighting installations.

Versatile Location Rating: Suitable for both wet and dry locations, providing flexibility for diverse installation environments.

Superior Color Accuracy: Delivers 90+ CRI, ensuring accurate and vibrant color rendering.

Indoor and Outdoor Versatility: Designed for both indoor and outdoor use, accommodating a wide range of lighting applications.

Precise Customization: Offers custom length options in 4-inch increments, allowing for highly tailored installations.

Adjustable Illumination: Dimmable functionality provides control over light intensity.

Certified Safety: ETL listed, meeting recognized safety standards for electrical products.
