LPS CUSTOM PANEL

Customizable LED Sheet Panel Lighting System

Experience seamless, uniform illumination with the LPS Custom Panel—crafted from high-quality light guide plate and advanced laser dot technology for maximum brightness. Perfect for hospitality, retail, residential spaces, bars, restaurants, accent lighting, millwork, signage, and custom fixtures.

INPUT VOLTAGE
POWER CONSUMPTION
THICKNESS
LUMEN OUTPUT
CRI
COLOR TEMPERATURE
WIRE SIZE

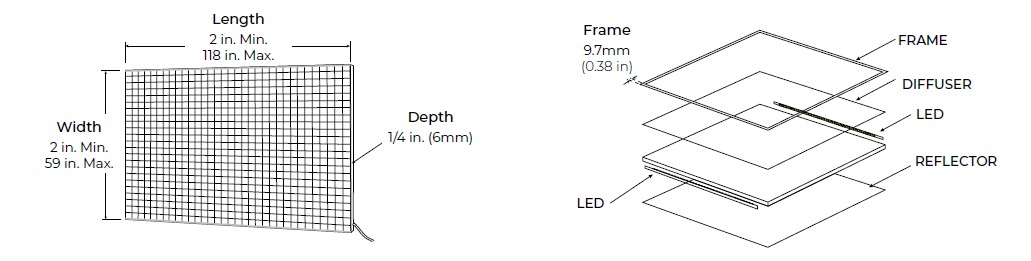

MAXIMUM SIZE
WEIGHT
OPERATING VOLTAGE
SURFACE LUX
UNIFORMITY
DIMMING
OPERATING TEMPERATURE
ENVIRONMENT
LUMEN MAINTENANCE

12V | 24V DC
4.5W/ Sq Ft.
6mm
65 Lm/W
90+
27K / 30K / 35K / 40K / 50K / 60K
20 AWG 2 Wire
118 in. x 59 in. (L x W)
1.46 lbs/sq ft.
120-277V
2,000 – 10,000 LUX
>85%
MLV, ELV, 0-10V, TRIAC and DALI

-22°F (-30°C) to 104°F (40°C)
Dry/Damp Location only (Indoor)
50,000 Hrs

Key Features:

Dual Voltage Compatibility: Operates on either 12V or 24V DC, providing flexibility in power supply options.

Large-Format Illumination: Supports a maximum size of 118 inches x 59 inches, enabling seamless coverage of large areas with a single sheet.

Accurate Color Representation: Offers a 90+ CRI (Color Rendering Index), ensuring colors are displayed faithfully and vibrantly.

Ultra-Thin Profile: Features a 6mm thickness, allowing for discreet integration into various architectural and design applications.

Precise Dimming Control: Dimmable down to 1%, providing fine-tuned control over light intensity and creating subtle lighting effects.

Certified Safety: UL Listed, meeting recognized safety standards for reliable and safe operation.
