ALP-102
Surface/Suspended Mount LED Profile
The ALP102R is an architectural-grade LED extrusion designed for recessed applications and compatible with linear LED strips up to 14mm (0.55”) wide. Made from high quality aluminum, these extrusions provide superior thermal management for LED strips and prolong the lighting system’s lifespan. Manufactured with a patented frosted diffuser for maximum lumen output and wider beam distrtibution.
• Customizable
• Compatible with 22mm (0.87″) wide LED strips
• Durable, anodized aluminum
• Frosted lens diffuser included
• Protects LED systems from dust and other elements
• Dissipates heat from LED, prolonging its lifetime

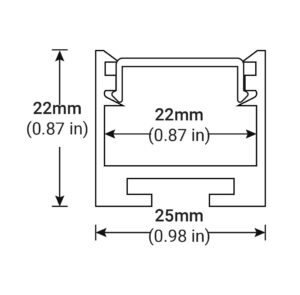

ALP-102
Surface/Suspended Mount LED Profile
The ALP-102 is an architectural-grade LED extrusion designed for surface applications and compatible with linear LED strips up to 22mm (0.87”) wide. Made from high quality aluminum, these extrusions provide superior thermal management for LED strips and prolong the lighting system’s lifespan. Manufactured with a patented frosted diffuser for maximum lumen output and wider beam distribution.
| TYPE AVAILABLE LENGTHS FINISH LENS OPTIONS CHANNEL LENS END CAP WARRANTY | Surface/Suspension Mount 49 in. | 98 in. Black, White, Silver Frosted, Black, Asymmetric, Double Asymmetric ALP-102 ALP102-LN (Included) ALP102-EC (Sold separately) 5 Years |
